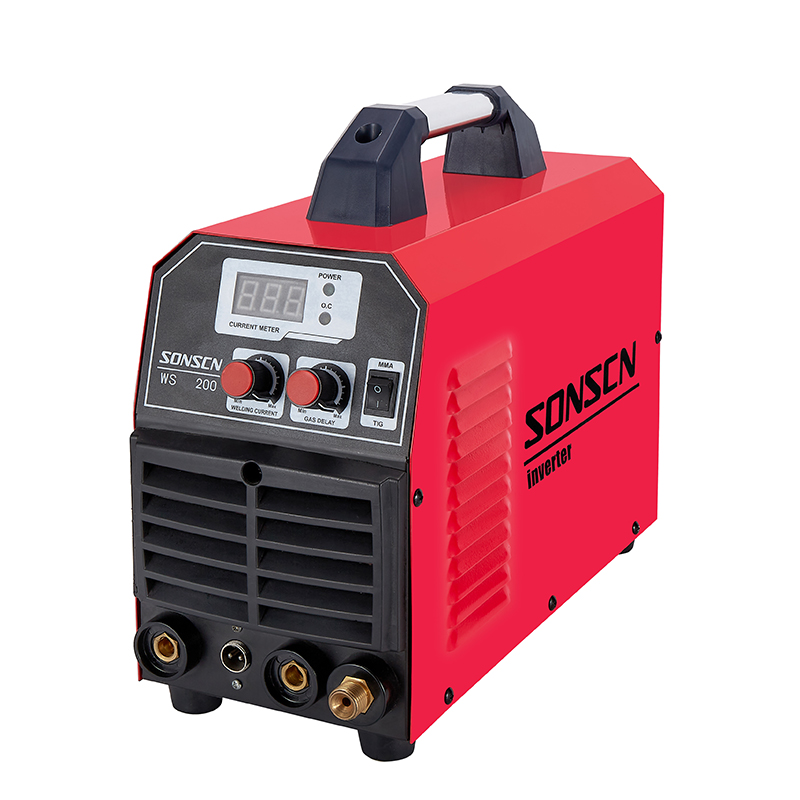

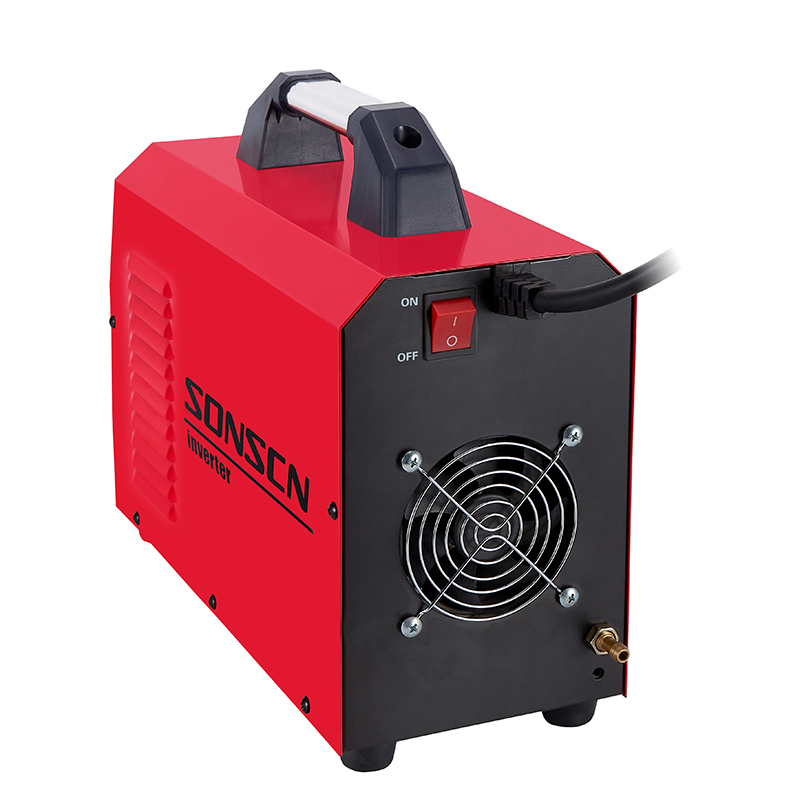

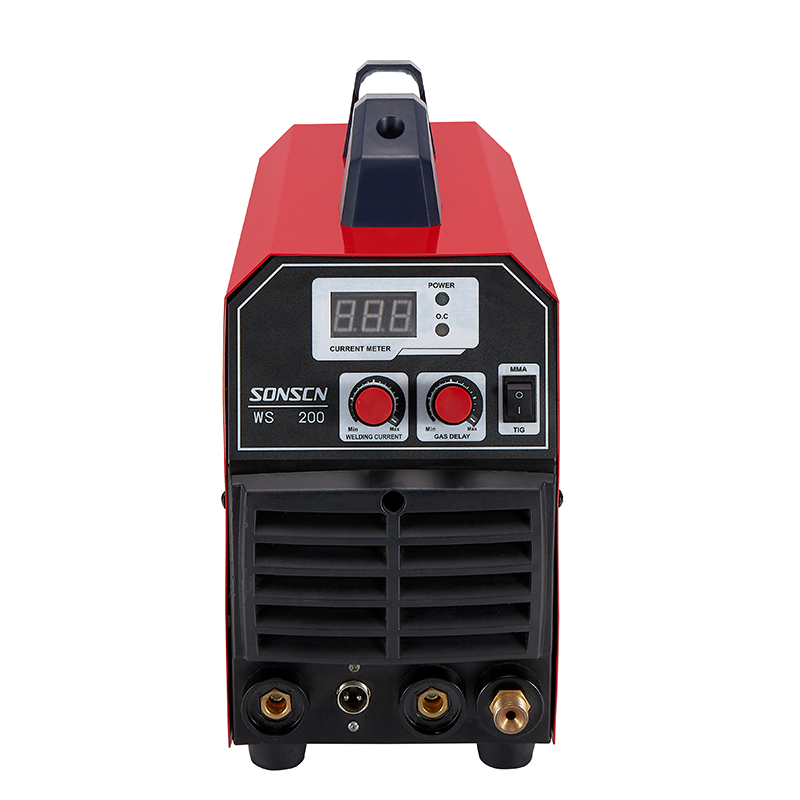

TIG/MMA Welding Machine

TIG&MMA Welding ---160/200

Multi-process: excellent performance on TIG and MMA
Advanced IGBT technology and PWM control: provides stable performance, reliability and high consistency.
Portable & lightweight: this welder is easy to operate and carry.
Hot start & anti-stick & built in arc force: provides quick and easy arc starting, stable welding arc, little splash, low noise.
Premium welding performance: Suitable for rutile, acidic, alkaline, stainless steel electrode, and cellulose electrodes such as 6010, 6011, etc.

Model	Power Voltage	No-load Voltage	Efficiency	Rated Input Power	Output Current Range	Duty Cycle	Electrode Diameter	Weight	Dimension
TIG/MMA160	230V土10% 50/60hz(1ph)	80V	85%	6.9KVA	10-160A	60%	1.5-4.0mm(5/32")	7.5kg	391728cm
TIG/MMA200	230V土10% 50/60hz(1ph)	80V	85%	9.6KVA	10-200A	60%	1.5-5.0mm(3/16")	8.0kg	391728cm

Features

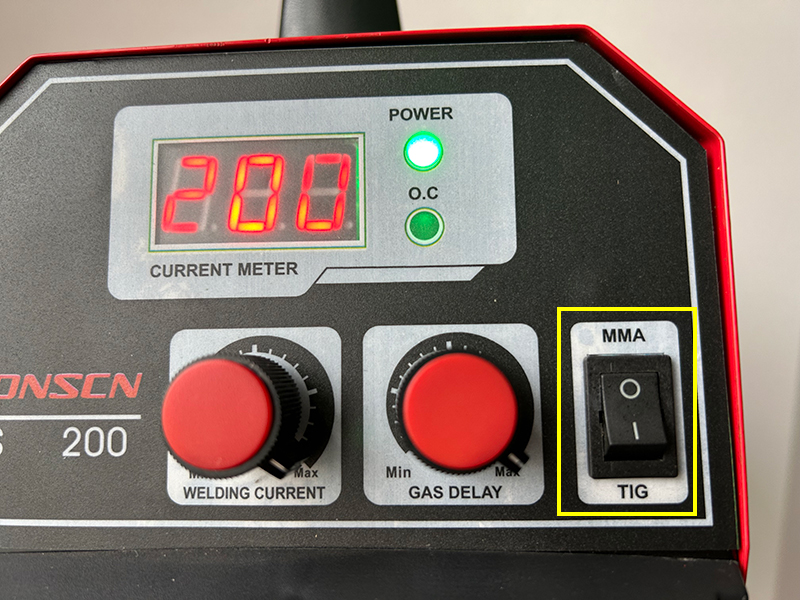

Multi-process
Excellent performance on TIG and MMA
Advanced IGBT technology and PWM control
Provides stable performance, reliability and high consistency.

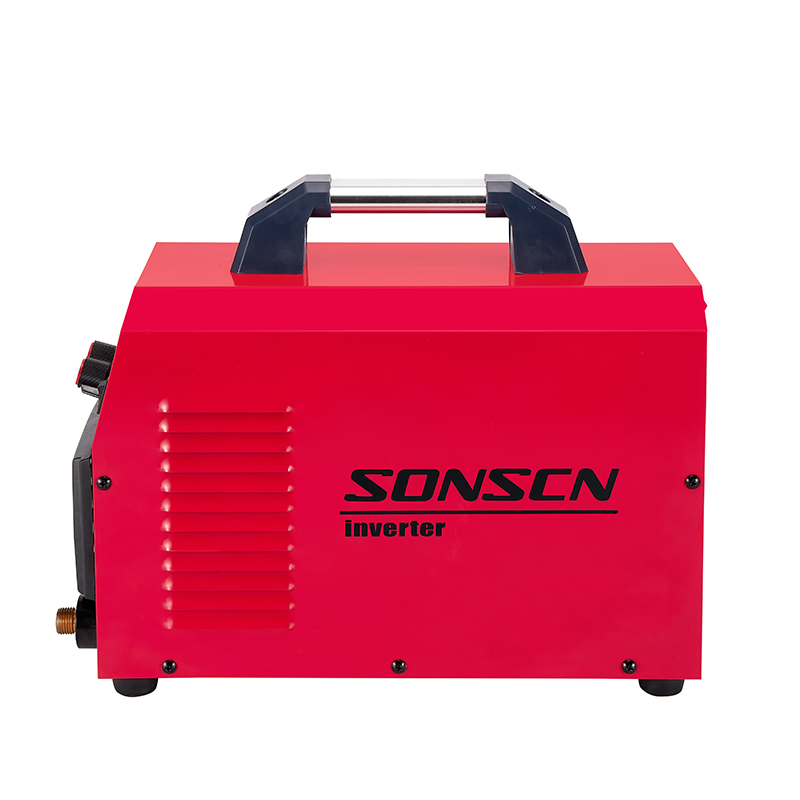

Portable & lightweight
This welder is easy to operate and carry.
Hot start & anti-stick & built in arc force
Provides quick and easy arc starting, stable welding arc, little splash, low noise.
Premium welding performance
Suitable for rutile, acidic, alkaline, stainless steel electrode, and cellulose electrodes such as 6010, 6011, etc.
Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, and over-current protection.
Wide range of input voltages & automatic balancing during voltage fluctuations
Weldable materials
Stainless steel, steel, titanium, nickel, magnesium and their alloys

Applications

SONSCN is dedicated to providing various welding machines for different industries, whether it is complex industrial environments or special applications.

Welding for minor construction projects
Welding for repairs and home DIY
Stick welding for equipment repair
Pipeline welding
Stainless steel door and window welding processing
Welding processing of kitchenware products
Metal sheet welding processing
Iron welding processing

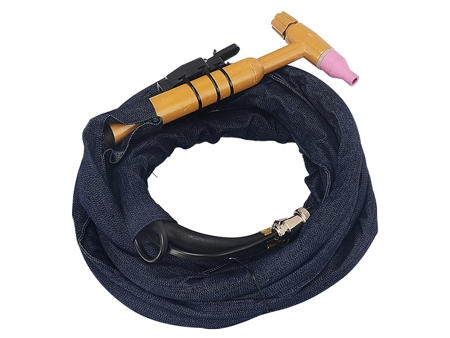

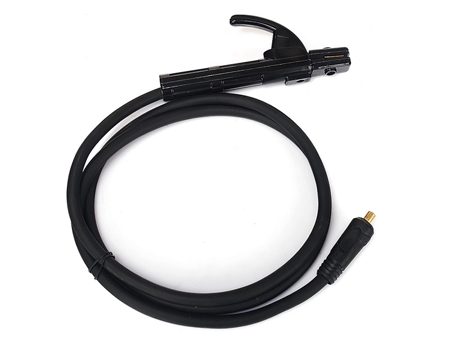

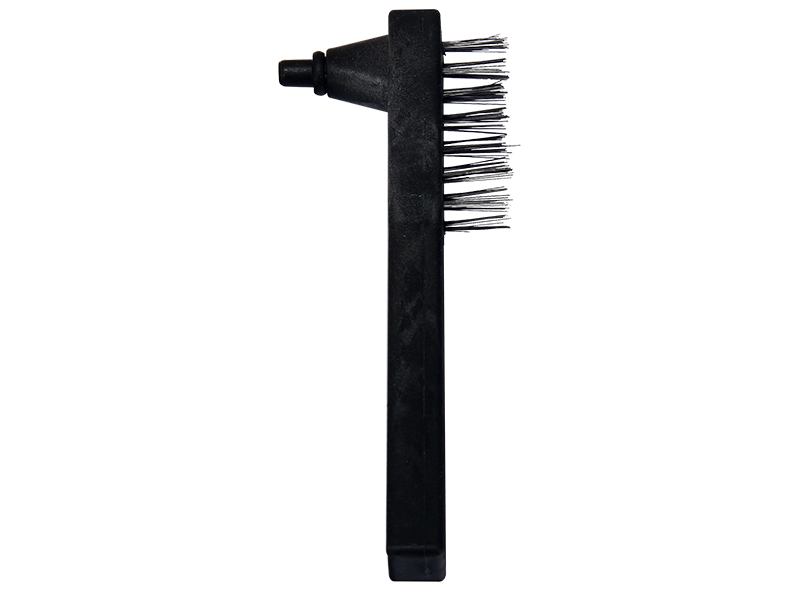

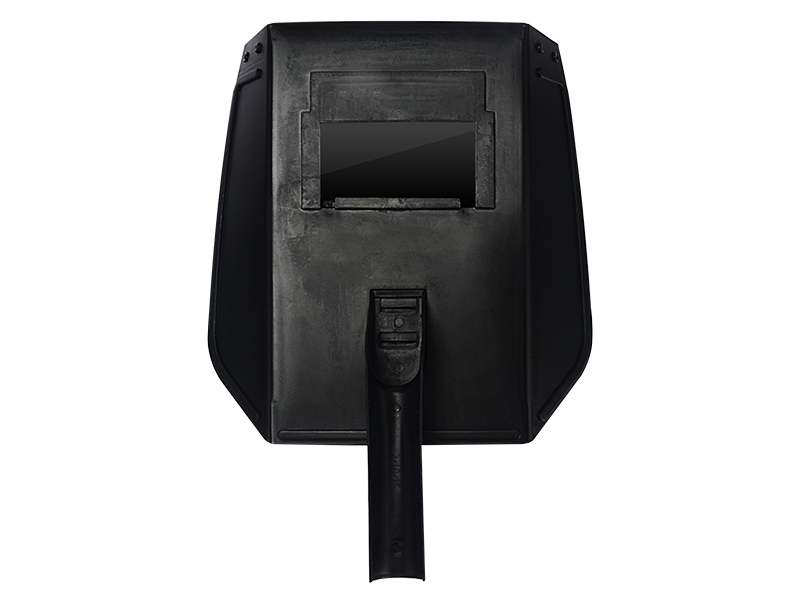

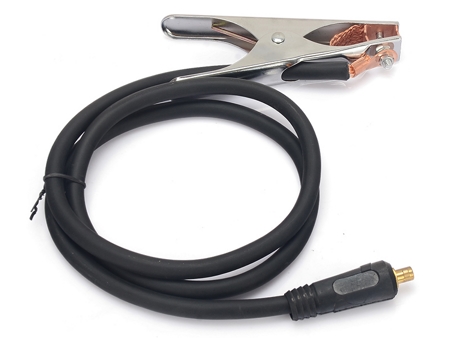

Standard Accessories

Optional Accessories

Quality Inspection

We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.

FAQs

Tungsten Inert Gas (TIG) welding uses the heat generated from an arc between a non-consumable tungsten electrode and the workpiece to melt the metal in the joint area and create a molten weld pool.

The TIG arc can start using lift arc or high-frequency current (HF). It utilizes advanced IGBT inverter and PWM control technology, making it compact, lightweight, and portable.

This welding machine can be used to weld a variety of materials, such as steel, stainless steel, titanium, nickel, magnesium, and their alloys.

SONSCN has become a professional welding equipment manufacturer with over 20 years of production experience. We not only provide welding machines but also offer related welding equipment accessories.

Yes, our welding machine has obtained multiple patented technologies and international CE certification. For more information, please click here to view.

If you have any questions about our welders, please email us or give us a call.
