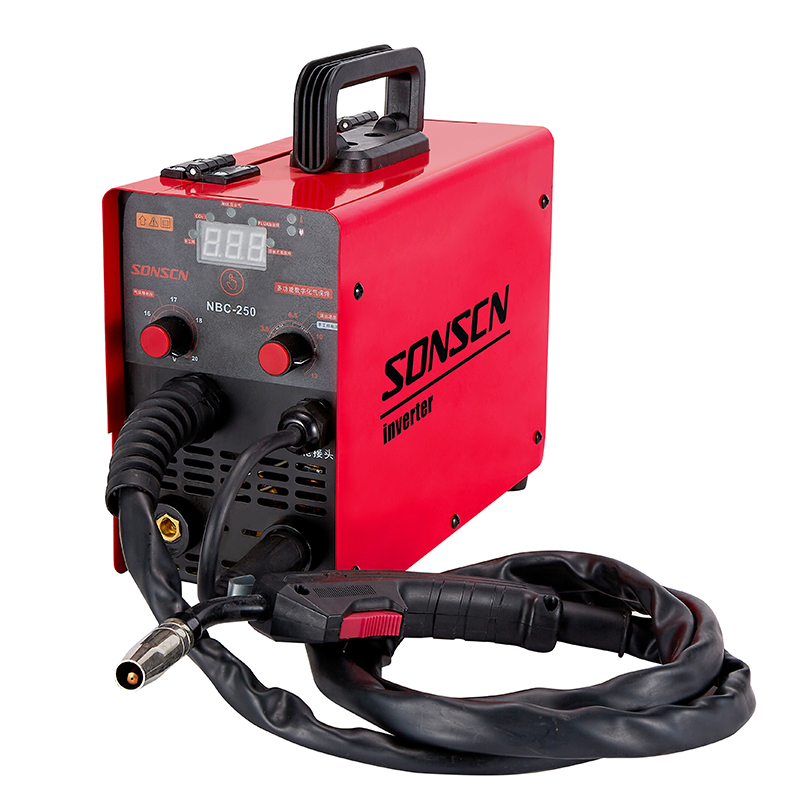

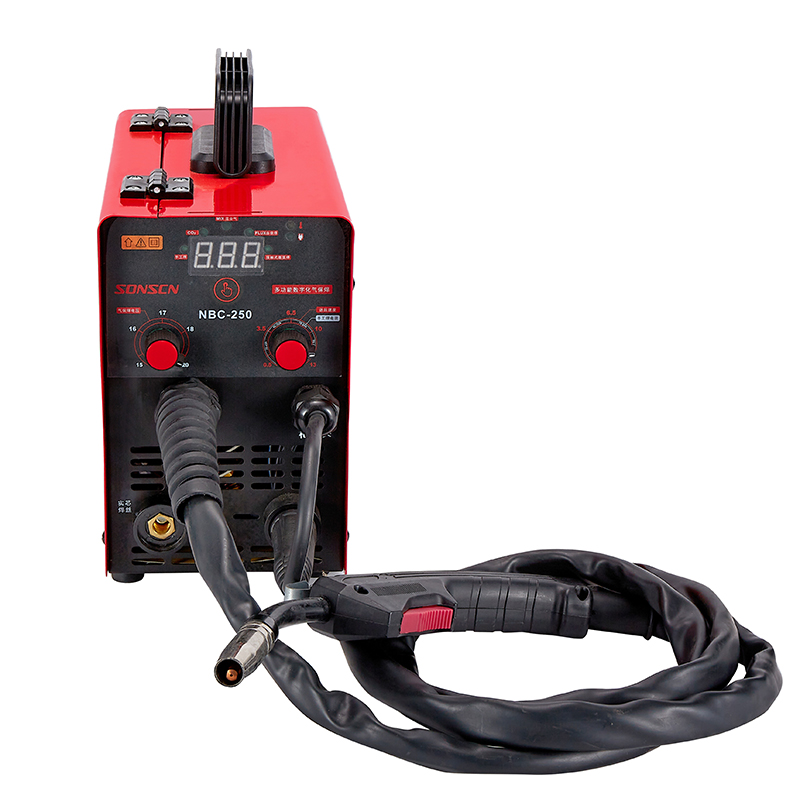

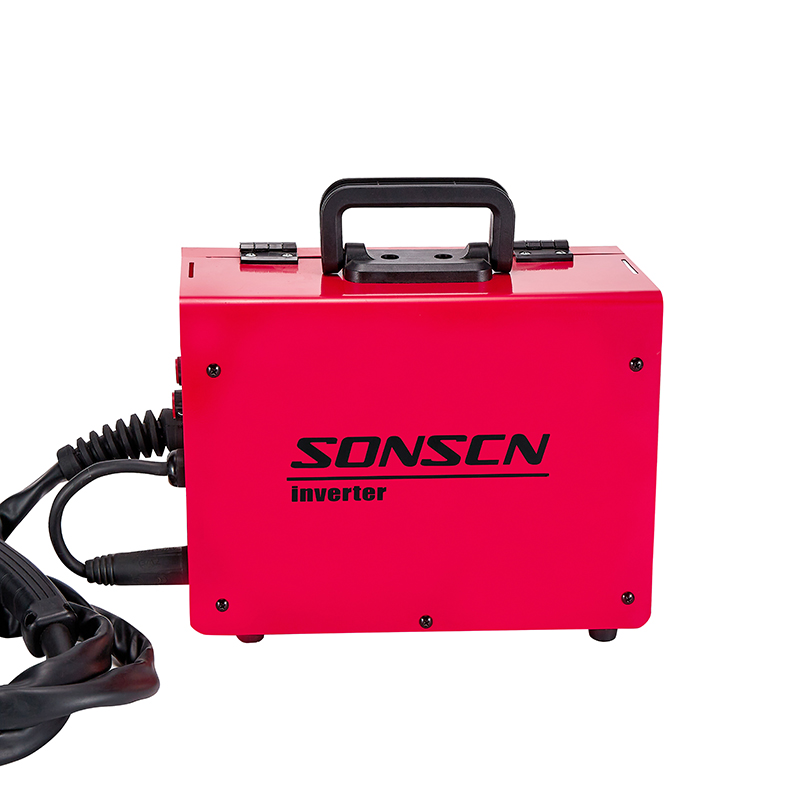

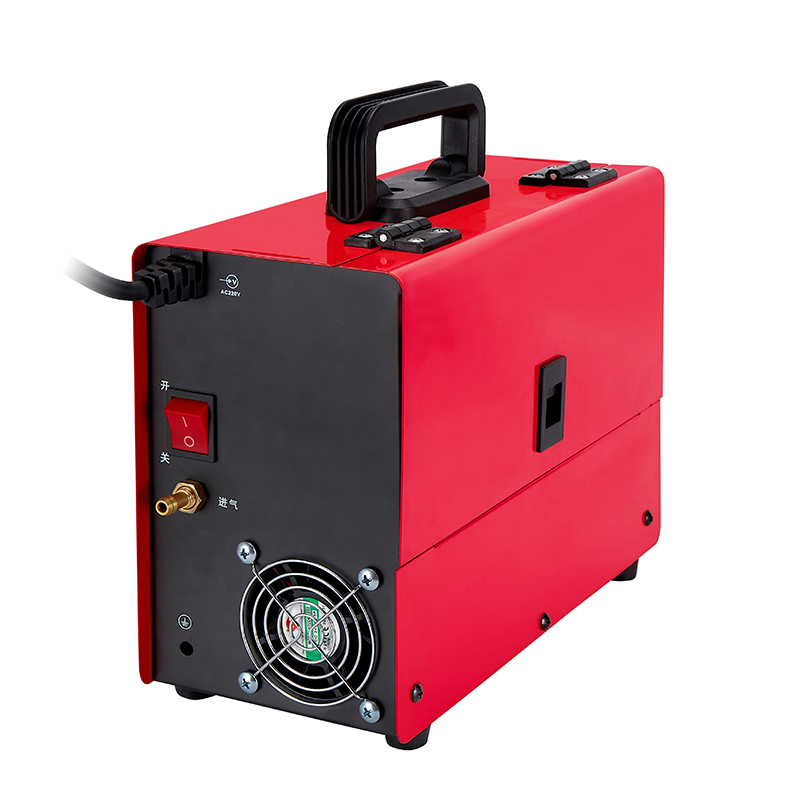

MIG/TIG/MMA 4-in-1 welder can use stick (MMA), lift TIG, gas (solid) wire MIG, gasless (flux) wire MIG. Advanced IGBT inverter technology and PWM control enables this welder to be compact, lightweight and portable, making it more convenient to carry and ideal for welding projects indoors or outdoors.
| Model | Power Voltage | Rated Input Power | No-load Voltage | Current | Rated Duty Cycle | Electrode Diameter | Insulation Class | Protection Class | Dimension | Weight |
| | 230V土10% 50/60hz(1ph) | 3.8KVA | 60V | 120A | 60% | 0.6-0.8mm | H | IP21S | 31*13*25cm | 5kg |
| | 230V土10% 50/60hz(1ph) | 4.5KVA | 60V | 140A | 60% | 0.6-0.8mm | H | IP21S | 33*14*25 cm | 6kg |
| | 230V土10% 50/60hz(1ph) | 5.2KVA | 60V | 160A | 60% | 0.6-1.0mm | H | IP21S | 36*15*28 cm | 6kg |
| | 230V土10% 50/60hz(1ph) | 6.1KVA | 60V | 180A | 60% | 0.6-1.0mm | H | IP21S | 38*16*30 cm | 7kg |
| | 230V土10% 50/60hz(1ph) | 8.4KVA | 60V | 200A | 60% | 0.6-1.2mm | H | IP21S | 38*16*30 cm | 7kg |
it provides little splash, deep molten pool and beautiful weld shape.
With the synergy function, adjust the wire thickness, the voltage and wire feeding speed will automatically change. Even beginners can use it with ease.
Allows for easy arc start by touching the workpiece with a tungsten electrode, starting current and shielding gas, and then quickly lifting the TIG torch, without the need of scratching.
Provides high rated duty cycle and efficiency.
Aluminum alloy welding, welding process for door and window manufacturing, fence installation, etc.
We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.
Inverter welding equipment manufacturer
Yongkang Songshi Technology Co., Ltd. is established in 2002 and located in Yongkang, Zhejiang Province.
Focus on inverter welder manufacturing since 2002
